Description
| Type | Milk Processing Plant |
| Automatic Grade | Automatic |
| Computerized | No |
| Color | Silver |
| Sr. No | Powder Specification for Agglomerated Powder | SMP | WMP (Lecithinated) |
| 1 | Fat | <1 % | >22 % |
| 2 | SNF | >96 % | 75.2% |
| 3 | Moisture by mass | <3.5 % | <2.8 % |
| 4 | Sugar | NIL | NIL |
| 5 | Insolubility Index | 0.2 ml | 0.3 ml |
| 6 | Bulk Density | 0.4-0.5 | 0.4-0.5 |
| 7 | Scorched Particle | Disc A | Disc A |
| 8 | Wettability at 49ºC (after 72 hours of storage) | <30 sec <30 sec | <30 sec <30 sec |
| 9 | Dispersibility (min.) % | 85% | 85% |
| 10 | Free fat | NA | <1% |

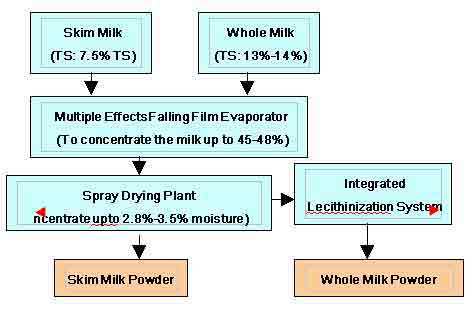

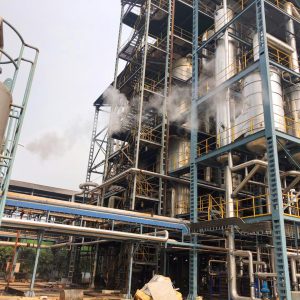

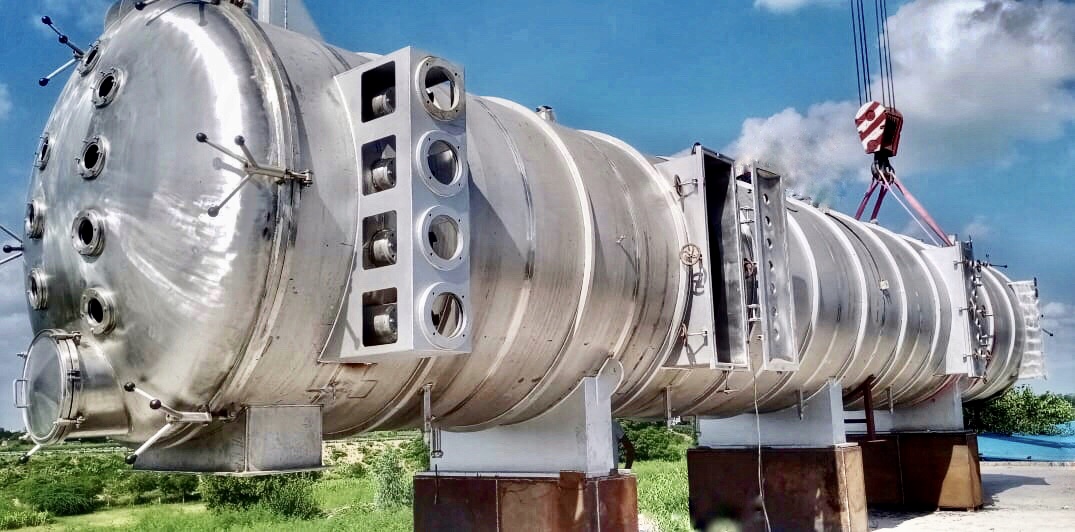

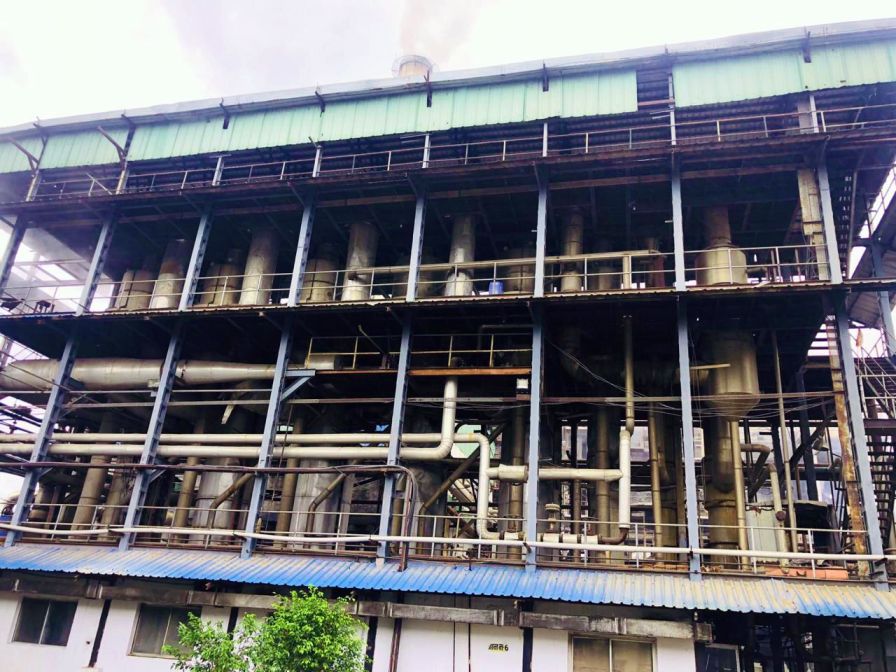

Salient features of FBE Make Evaporators
- Adjustable and controllable direct contact heat treatment units.
- Shortest possible residence time.
- Special design to prevent bacteriological growth including thermophiles.
- Special design of liquid distribution systems to ensure correct tube coverage.
- Extended tube length.
- Efficient design of separators.
- Low energy consumption (Steam, Power, cooling water).
- Easy operation.
- No scale formation in tubes.
Salient features of FBE Make Dryers
- Good plant performance due to the absence of any air flow obstruction inside the chamber
- Good agglomeration potential.
- Instant quality of powder is formed.
- Higher plant capacity for a given size.
- Low energy consumption.
- Alternate arrangements of Rotary atomization or nozzles in the same dryer
- Used for the whole range of dairy products as the SMP, WMP, DW etc.
- Single stage spray dryer and Spray dryer with IBD and VFD shall be used alternately in the same plant
- Fines-return to atomization device or VF
- Pneumatic cooling and conveying system in stead of VF
- Pneumatic cooling and conveying system in stead of VF
- Air exhaust through centre duct in the chamber.
Advantage of Lecithinization system
- Lecithinization system is integrated with Spray dryer to manufacture Whole milk powder.
- The lecithinization refers to the coating of powder by a wetting agent consist of lecithin dissolved in butter oil. The wetting agent is sprayed to powder under fluidization in VFD, so that good quality of WMP s produced with it.
